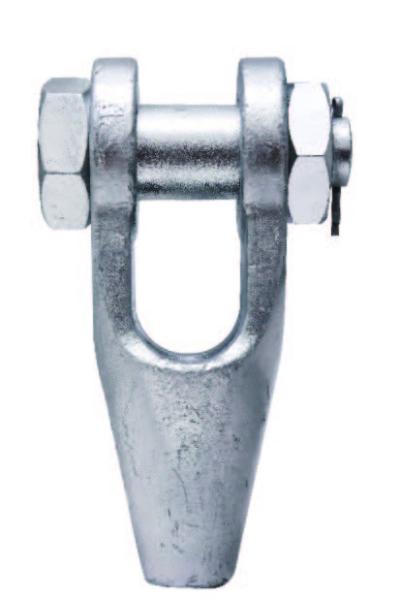

38mm Wire Rope End Stop With Cotter Pin , Open Spelter Socket

  • 1
  • 2

Brand Name : Anfeng / AF

Model Number : SOA-10

Certification : CE, GS, ISO 9001

Place of Origin : China

MOQ : 500 pcs

Price : Call or Email for quote

Payment Terms : T/T, L/C

Supply Ability : 10,000 pcs per month

Delivery Time : Within 45 days after order confirmation

Packaging Details : Carton + pallet, wooden box, or custom

Standard : EN 13411-4:2002

Material : Galvanized steel

Rope Diameter : 38mm

Rope Strength : 1770 MPa

Length : Customized

Key word : Open Spelter Socket with cotter pin, End fitting for Wire Rope, long-term durability

OEM or ODM services : Yes, upon request

Place of origin : Shanghai or Guangzhou, China

Packing : Carton + pallet, wooden box, or custom

Contact Now

Open Spelter Socket with cotter pin, 18mm in rope diameter, End Fitting for Wire Rope, long-term durability
Wire Rope End Fittings
Description
Our Open Spelter Socket is equipped with cotter pin. They are made from high tensile, quenched and tempered cast steel, with a different chemical composition and with extremely high mechanical properties, while galvanization ensures its long-term durability. The Open Spelter Socket with cotter pin is available for wire rope with a diameter from 6mm to 100mm.
Specification
38mm Wire Rope End Stop With Cotter Pin , Open Spelter Socket
Product code Rope diameter MBL Dimensions (mm) Weigth
(mm) (in.) (t) A C D F G H J

L

 M N (kg)
SOA-01 6-7 1/4 4.5 115.8 19.1 18.0 9.7 17.5 39.6 57.2 40.4 33.3 9.1 0.50
SOA-02 8-10 5/16-3/8 12.0 122.9 20.6 20.0 12.7 20.6 42.9 57.2 45.2 38.1 11.2 0.59
SOA-03 11-13 7/16 - 1/ 2 20.0 141.2 25.4 26.0 14.2 23.9 47.8 63.5 51.8 47.8 12.7 1.02
SOA-04 14 -16 9/16-5/8 27.0 171.5 31.8 30.0 17.5 28.7 57.2 76.2 64.6 57.2 14.2 1.63
SOA-05 18 3/4 43.0 201.7 38.1 35.0 22.4 31.8 66.6 88.9 77.3 66.6 15.8 2.64
SOA-06 20-22 7/8 55.0 235.0 44.5 41.0 25.4 38.1 82.6 101.6 90.5 79.5 20.3 4.38
SOA-07 24-26 1 78.0 268.2 50.8 51.0 28.7 44.5 95.3 114.3 101.6 95.3 22.4 7.03
SOA-08 28-30 1-1/8 92.0 300.0 57.2 57.0 31.8 50.8 104.7 127.0 118.5 104.7 25.4 9.75
SOA-09 32-35 1-1/4-1-3/8 136.0 335.0 63.5 64.0 38.1 57.2 120.7 139.7 129.7 120.7 28.7 14.1
SOA-10 38 1-1 / 2 170.0 384.0 76.2 70.0 41.4 69.9 133.0 152.4 156.1 136 .7 30.2 21.4
SOA-11 40-42 1-5/8 188.0 412.8 76.2 76.0 44.5 76.2 140.0 165.1 168.3 146.1 33.3 24.9
SOA-12 44-48 1-3/4-1-7/8 268.0 463.6 88.9 89.0 50.8 79.5 162.0 190.5 182.0 165.1 39.6 37.2
SOA-13 50-54 2-2-1/8 291.0 546.1 101.6 95 .0 57.2 95.3 188.0 215.9 232.8 177.8 46.0 59.0
SOA-14 56-60 2-1/4-2-3/8 360.0 596.9 114.3 108.0 66.8 101.6 210.0 228.6 259.3 196.9 54.1 76.0
SOA-15 64-67 2-1/2-2-5/8 424.0 647.7 127.0 120.0 73.2 114.3 235.0 247.7 279.4 215.9 60.5 114.0
SOA-16 70-73 2-3/4-2-7/8 511.0 692.2 133.4 127.0 79.3 124.0 267.0 279.4 285.8 228.6 73.2 143.0
SOA-17 75-80 3-3-1/8 563.0 736.6 146.1 133.0 85.9 133.4 282.0 304.8 294.2 241.3 76.2 172.0
SOA-18 82-86 3-1/4-3-3/8 722.0 784.4 158.8 140.0 92.0 146.1 302.0 330.2 308.0 254.0 79.3 197.0
SOA-19 88-92 3-1/2-3-5/8 779.0 844.6 171.5 152.0 98.6 165.1 315.0 355.6 332.4 273.1 82.6 255.0
SOA-20 94-102 3-3/4-4 875.0 920.8 190.5 178.0 108.0 184.2 346.0 381.0 360.0 317.5 88.9 355.0
Note:
1. Reference standard: EN 13411-4: 2002, RR-S-550D (type A).
2. The above metioned wire ropes feature 6 x 19 + IWRC, 6 x 37 (a) + IWRC, 6 x 61 (a) + IWRC and 8 x 61 (a) + IWRC construction, with 1770 MPa in tension strength.
3. The wire rope structure, tensile strength and working load limited could be customized according to customer's request.
4. Safety Factor for the wire rope sling is 5:1.
